Features:-

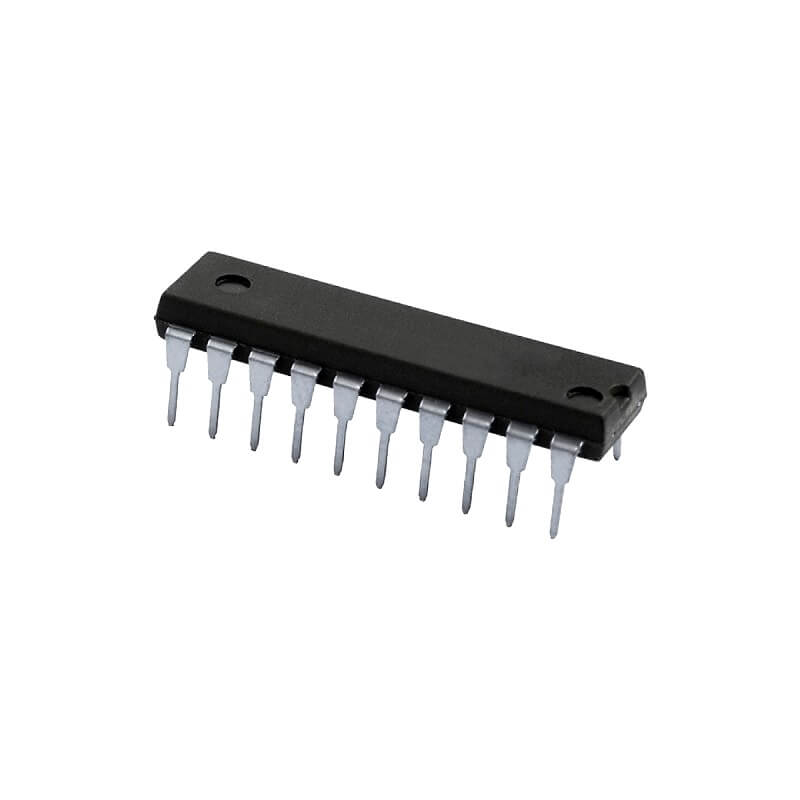

• Bi-Directional bus transceiver in a high-density 20-pin package
• 3-STATE outputs drive bus lines directly
• PNP inputs reduce DC loading on bus lines
• Hysteresis at bus inputs improve noise margins
• Typical propagation delay times, port-to-port 8 ns
• Typical enable/disable times 17 ns
• IOL (sink current) 24 mA
• IOH (source current) −15 mA
Specifications:-
| Parameter | Specification |
| Supply Voltage (VCC) | 7 V |
| Input Voltage (VI) | 7 V |
| Operating free-air temperature range | 0°C to +70°C |
| Storage temperature range | –65°C to +150°C |
