The CD4075 is a CMOS logic IC with three independent 3-input OR gates. It delivers high noise immunity, low power consumption, and is ideal for digital logic design and control applications.

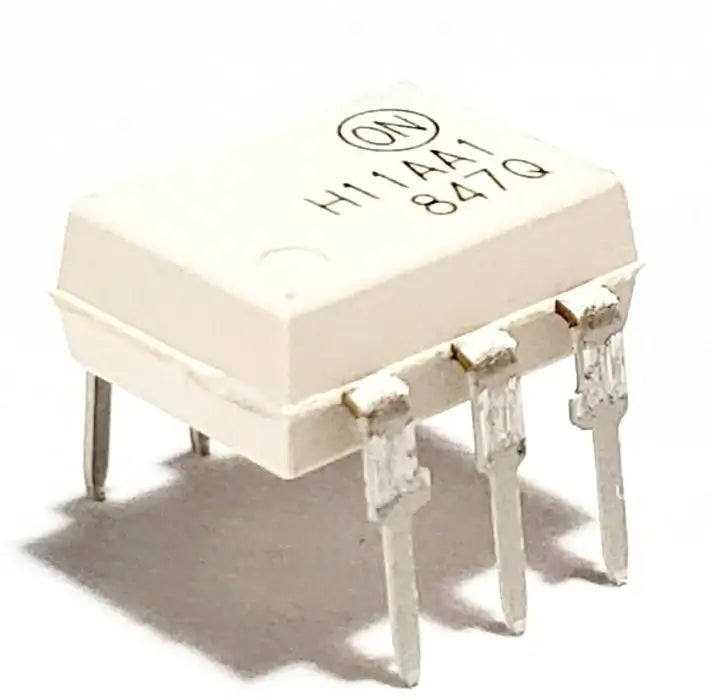

Description: The H11AA1 is a 6-pin optocoupler IC that provides electrical isolation between input and output using an LED and a phototransistor. It is widely used in AC signal sensing, zero-crossing detection, and interfacing low-voltage control circuits with high-voltage systems.

Description: SMD DS1307 is a real-time chip of DALLAS company, which adopt I2C protocol to communicate with SCM, and there was this kind interface on Arduino, therefore is very convenient to link with each other. DS1307 SMD have a programmable waveforms output, it can...

Description: The ADC0804 is a commonly used ADC module, for projects where an external ADC is required. It is a 20-pin Single channel 8-bit ADC module. Meaning it can measure one ADC value from 0V to 5V and the precision when voltage reference (Vref...

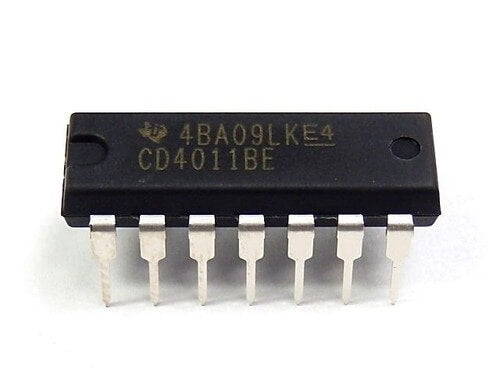

CD4011BE IC CMOS Quad 2 Input NAND Gate is a logic gate which produces an output which is false only if all its inputs are true. CD4011BE IC CMOS Quad 2 Input NAND Gate are NAND gates provide the system designer with direct implementation of the NAND function...

The T74LS05B1 AND Gate IC is a high-performance integrated circuit designed to perform logical AND operations. This versatile component is commonly used in digital circuits and systems to implement various logic functions. Key Features: AND Gate Functionality: Performs the logical AND operation, producing a high...

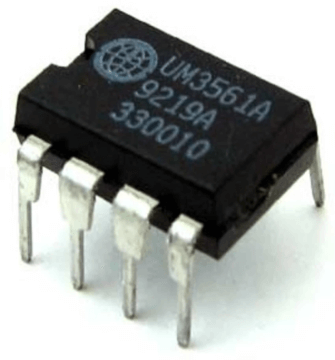

Description: Create realistic sound effects with the UM3561 sound generator IC. This versatile chip offers four distinct sound types, adjustable frequency, and operates at low voltages, making it ideal for alarms, toys, and various audio applications. Key Features: Generates four different sound types Monotone...

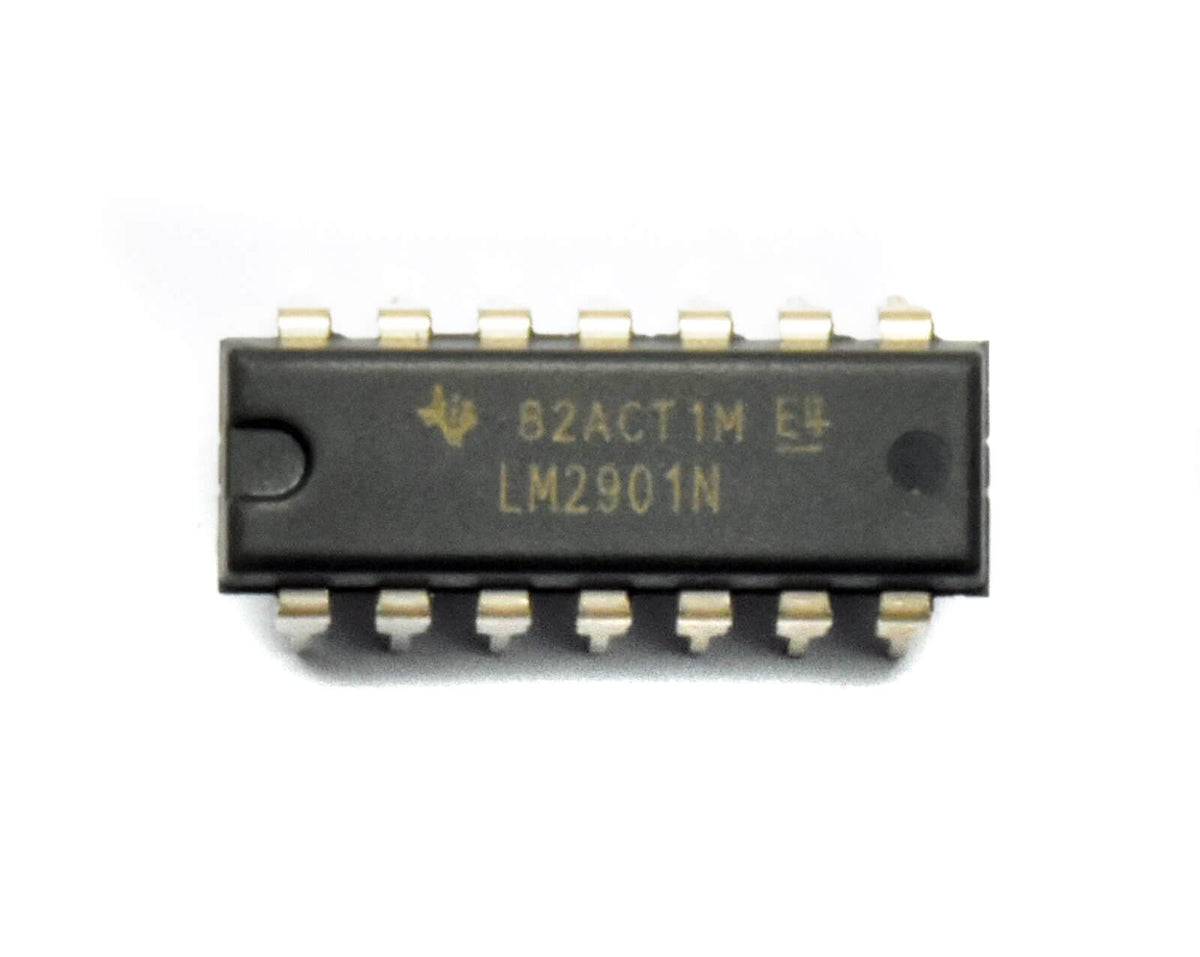

A comparator is a device that compares two voltages or currents and outputs a digital signal indicating which is larger. The LM2901N devices consist of four independent voltage comparators that are designed to operate from a single power supply over a wide range of...

This is DC to DC converter IC. It is normally used to design step-down, step-up, or inverter circuits. This IC can be found in automobile phone chargers to regulate the flow of current. It is very efficient than linear circuits. The input voltage for...

The CD4050BE is a CMOS non-inverting buffer/driver IC designed for voltage level shifting and signal amplification. It provides high current output, wide voltage operation, and reliable performance, making it ideal for digital circuits, interfacing, and general logic applications.

74LS126 Features Quad Bus Buffers with 3-State Outputs Separate Control for each Channel High-Impedance Output State Standard TTL Switching Voltages 74LS126 Specifications Supply Voltage 4.75 – 5.25Vdc Maximum Clock Frequency 40Mhz Power Dissipation 2mW/gate @100kHz Minimum Output Current 8mA Propagation Delay 10nS Fan Out...

The 5815M RDA5815M QFN-20 Signal IC is a high-performance and versatile component designed for satellite receiver systems. This advanced IC offers exceptional features, including a fully integrated RF front end, wide frequency range, low noise reception, and precise frequency synthesis. Key Features: Fully Integrated...

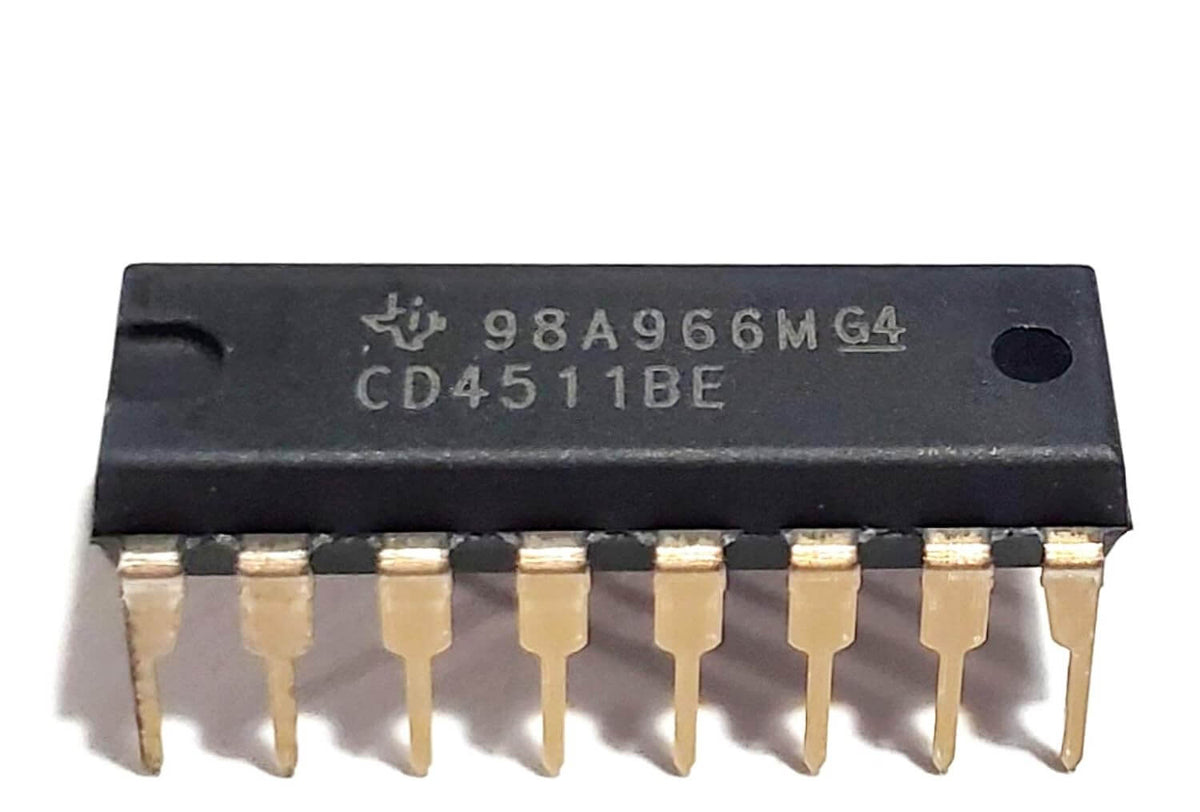

CD4511 - BCD to 7-segment Latch/Decoder/Driver CATEGORY Integrated Circuits (ICs) NAME CD4511, BCD to 7-segment Latch/Decoder/Driver FAMILY CMOS SERIES 4000 MOUNTING TYPE Surface Mount NO. OF PINS 14 (DIP) Feature Contains a 4-bit Storage Latch, BCD-to-Seven Segment Decoder and Output Drive Suitable for LED, Incandescent,...

MC33262 DIP IC – High-Performance PWM Controller The MC33262 DIP IC is a high-performance Pulse Width Modulation (PWM) controller, widely used in switch-mode power supplies (SMPS), power converters, and industrial circuits. Designed for high-efficiency power regulation, this IC ensures stable and precise voltage control in AC-DC and DC-DC power management applications....

The TL7700A series are monolithic supply voltage supervisor IC’s specifically designed for use as reset controllers in microcomputer and microprocessor systems.Voltage watchdog for microcontrollers with adjustable watching level, both output types (active in Hi and Lo), input for push-button, adjustable reset time via external...
