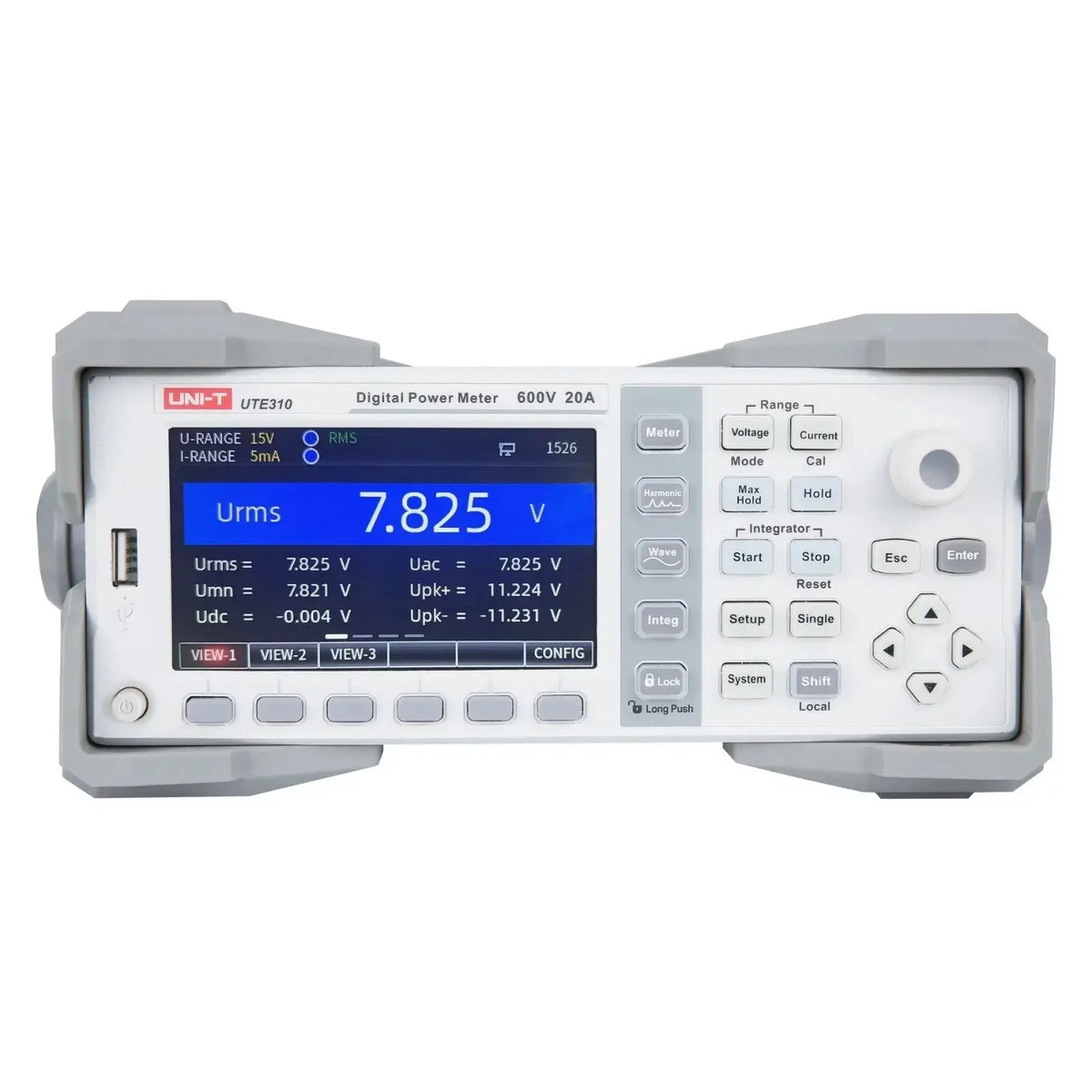

UTE310 1MHz High-Performance Digital Power Meter

Top Specification for UTE310:

• The device has a 4.3” TFT-LCD display with a resolution of 480*272.
• It offers an RMS measurement range from 25μA to 20A for current and from 75mV to 600V for voltage.
• Its highest resolution is 1mV for voltage, 0.1uA for current, and 0.001mW for power.
• Basic accuracy for voltage, current, and power is rated at 0.1%.
• The measurement bandwidth spans from DC to 300kHz, with a sampling rate of 1MHz.
• Rich communication interfaces include USB, RS-232, and LAN, with GP-IB being optional.
• It supports both Modbus and SCPI communication protocols.
• Additional features include display wave function, 50th harmonic measurement, rich math operations, D/A output for measurement recording, comparator function, current sensor input, USB data storage, and USB program upgrade.
