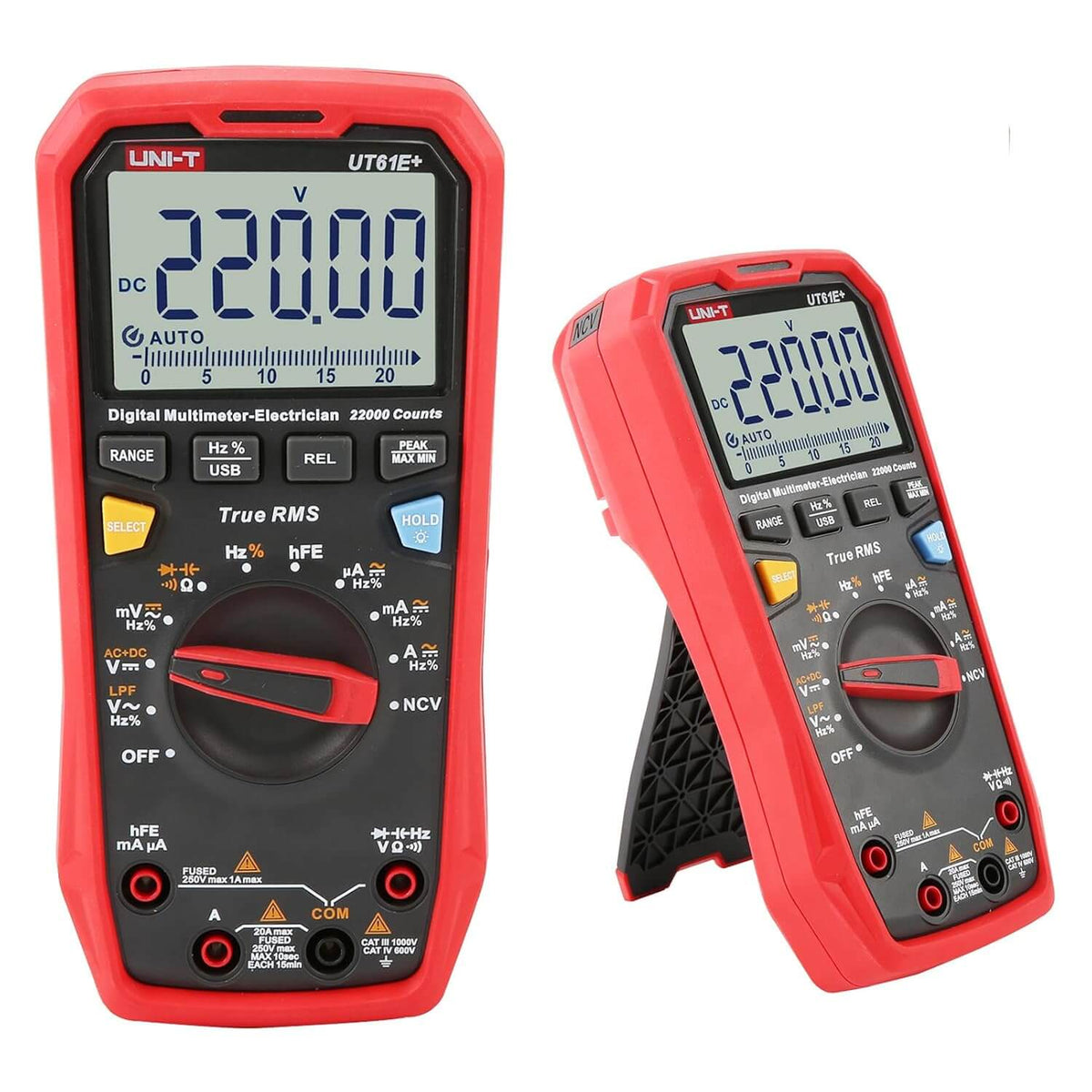

UT161E Series 1000V True RMS Digital Multimeter
SKU:
product-15889
Availability:
Many in stock
Product type:
Uncategorized
Rs.0.00
Features of UT161E Series 1000V True RMS Digital Multimeter
Certifications: CE, UKCA, cETLus
● True RMS
● Data hold/backlight
● Max/Min/Relative mode
● USB communication
● Input protection
● Diode/continuity test
● NCV (audible/visual alarm)
UT161E – 1000V True RMS Digital Multimeter
Specifications
| Function | Range | Accuracy |
|---|---|---|
| AC Voltage (V) | 1000V | ±(0.8%＋10) |
| DC Voltage (V) | 1000V | ±(0.05%＋5) |
| AC Current (A) | 20A | ±(0.8%＋10) |
| DC Current (A) | 20A | ±(0.5%＋10) |
| Resistance (Ω) | 220MΩ | ±(0.5%＋10) |
| Capacitance (F) | 220mF | ±(3%＋5) |
| Frequency (Hz) | 220MHz | ±(0.01%＋5) |
| Duty Cycle (%) | 0.1%–99.9% | ±(2%＋5) |
| Display Count | 22000 | – |
| Bandwidth (Hz) | 40Hz–10kHz | – |
| ACV + DCV | √ | – |
| Transistor hFE | √ | – |
| Analog Bar | 46 segments | – |
General Characteristics
-
Power Supply: 1.5V battery (R03) × 4
-
Net Weight: 350g
-
Dimensions: 190 × 90 × 50 mm
-
Standard Accessories: Battery, gold-plated test leads, USB cable, multi-purpose socket, English manual
-
Packing: Gift box, cloth bag
-
Carton Quantity: 20 pcs
-
Carton Size: 480 × 370 × 325 mm
-
Carton Gross Weight: 17.8 kg
-
Optional Accessory: Bluetooth / APP
