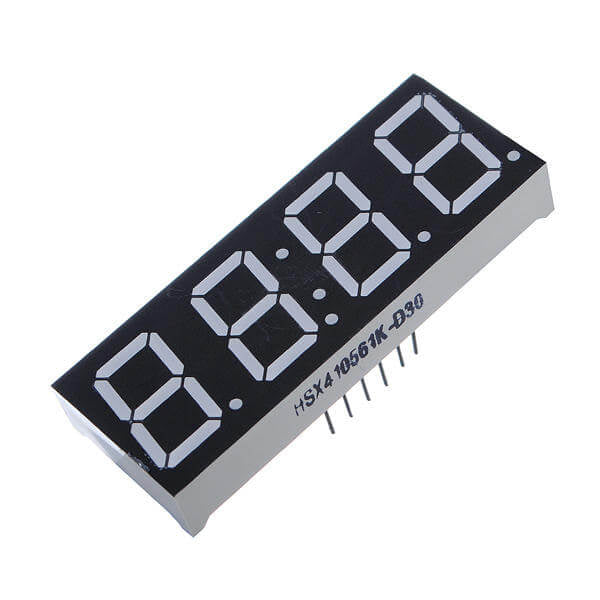

4 Digit 7 Segment Common Anode LED Screen Display In Pakistan

Description:

4 Digit 7 Segment Common Anode LED Screen Display is ideally suite to adding a display to your project. 4 Digit 7 Segment Common Anode LED Screen Display  is compatible with prototyping boards such as the MB-102 which feature standard sockets with a pin pitch of 2.54mm. This module lets you display your information in a bold and bright way, taking your project to new levels of display, writing all manners of numbers and words with numbers from 0-9, A-F, and –.
This module has Red LEDs that are powered via a connection to 3.3 – 5V. The display operates by being supplied with VCC to a particular segment pin. Following which applying GND to both a particular D pin will cause a specific segment on a specific digit to illuminate.

Features of 4 Digit 7 Segment Common Anode LED Screen Display:

1. It is an electronic display device for displaying decimal numerals.
2. It is also known as “seven-segment indicator”.
3. Parallel control
4. 0.56″(inch) Height digits
5. Suitable for use with 220 Ohm resistors
6. Designed to be compatible with standard 2.54mm sockets

Specifications of 4 Digit 7 Segment Common Anode LED Screen Display:

1. Pin Number:12 pins
2. Digit Number: 4 digits Common anode
3. Digit Height: 0.56 inch / 1.4 cm
4. Size (L x W ): 2 x 0.75 inch / 5 x 1.9 cm
5. Colour: Red
6. Voltage: 3.3 – 5V DC Input (resistor required)

Package Includes:

1 x 4 Digit 7 Segment Common Anode LED Screen Display
