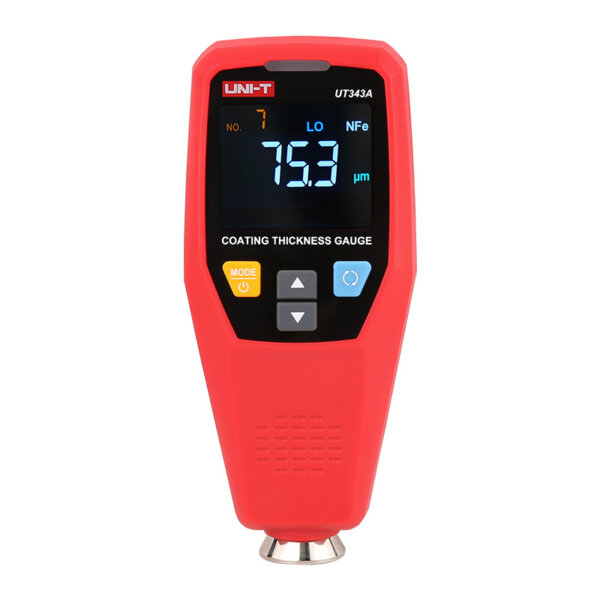

Name: UT343A Coating Thickness Gauge in Pakistan
Brand: Electronics Hub
SKU: 14755
Availability: InStock
Rating: 5 (1 reviews)

The UT343A Coating Thickness Gauge is designed to measure the thickness of plated and coated sheets on both ferrous and non-ferrous materials. With a wide measurement range of up to 1750µm, this versatile device is ideal for use in various industries, including manufacturing, metal processing, and the chemical industry. Additionally, it excels in commodity inspection and can be reliably used in both workshops and outdoor environments. Thanks to its durable design and precise measurements, the UT343A ensures consistent performance, making it a trusted tool for professionals seeking efficiency and accuracy in coating thickness measurement across multiple applications.

Features of UT343A

1 Data storage: 199 groups
2 Measurement method: Single/Continuous
3 Max/Min/Avg
4 Unit conversion (um/mil）

5 Rotatable screen
6 LED/Buzzer alarm
7 Auto power off

Specifications of UT343A

Specifications	Range
Certificates	RoHS
Measuring range	0~1750um
Accuracy	±(3%H+1)um
Measurement method	Single/Continuous
Measurement mode	Max/Min/Avg
Metal type	Ferrous/non-ferrous
Features
Display type	EBTN display
LCD brightness control	√
Rotatable screen	√
Unit conversion	√
Audio alarm	√
LED alarm	√
Data storage	199 groups
Auto power off	√
Low battery indication	√
General Characteristics
Power	1.5V battery (LR03) x 2
Product color	Red and grey
Product net weight	About 111g
Product size	117mm x 53mm x 37mm
Standard accessories	Ferrous substrate, non-ferrous substrate
Standard individual packing	Gift box, English manual

Why choose The UT343A Coating Thickness Gauge?

The UT343A Coating Thickness Gauge stands out as a highly reliable tool for measuring the thickness of plated and coated sheets on both ferrous and non-ferrous materials. With a wide range of up to 1750µm, it ensures precise measurements across various industries, such as manufacturing, metal processing, and chemical sectors. Additionally, its ability to perform consistently both indoors and outdoors makes it an ideal choice for versatile applications. Furthermore, its user-friendly design, coupled with high accuracy, ensures that professionals can achieve optimal results efficiently. As a result, the UT343A is a dependable and essential tool for any coating thickness measurement task.

Package included

UT343A Coating Thickness Gauge x 1
