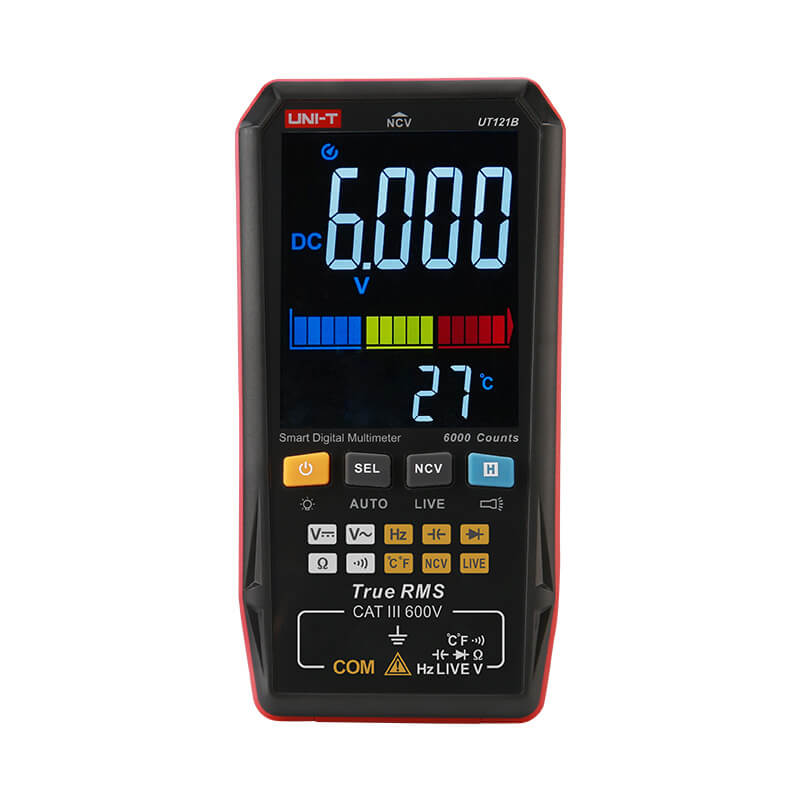

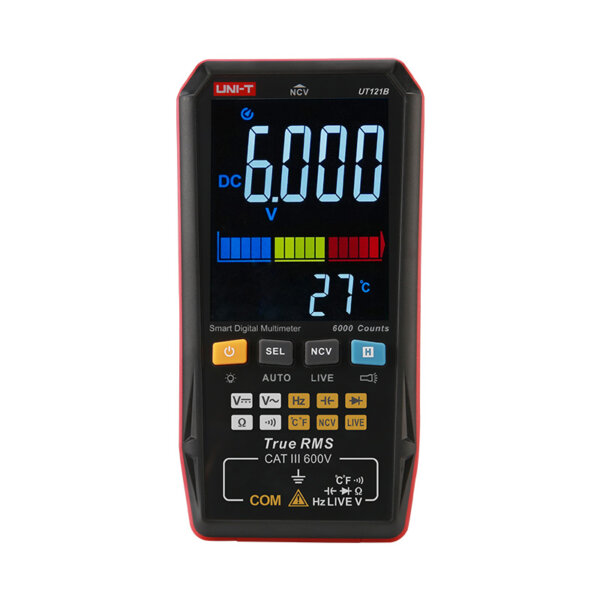

UT121B Series Smart Digital Multimeters

Features of UT121B Series Smart Digital Multimeter

• True RMS for accurate signal measurement

• AC voltage measurement up to 750V

• DC voltage measurement up to 1000V

• Resistance measurement up to 60MΩ

• Capacitance measurement up to 60mF

• NCV (Non-Contact Voltage) / LIVE detection

• Full-scale input protection

• Large-size LCD screen with 6000 counts

• Intelligent identification gear

• Ultra-thin 19mm compact body

  UT121B Specifications

  Function	Range	Accuracy
  AC Voltage (V)	6.000V / 60.00V / 600.0V / 750.0V	±(1.5% + 3)
  AC Voltage Frequency	10Hz – 1kHz	±(0.5% + 2)
  DC Voltage (V)	6.000V / 60.00V / 600.0V / 1000.0V	±(1.2% + 3)
  Resistance (Ω)	600.0Ω / 6.000KΩ / 60.00KΩ / 600.0KΩ / 60.00MΩ	±(2.0% + 5)
  Capacitance (F)	60.00nF – 60.0mF	±(10% + 5)
  Frequency (Hz)	10.00Hz – 10.00MHz	±(0.1% + 3)
  Temperature (°C/°F)	–40°C to 1000°C / –40°F to 1832°F	±3°C / ±6°F

  ---

  ? UT121B Features

  • 6099 Display Count with Dual Display

  • Auto Range

  • NCV (Non-Contact Voltage) Detection

  • LIVE Wire Detection

  • Diode Test

  • Continuity Buzzer

  • LCD High Voltage Alert

  • Built-in Flashlight

  • Low Battery Indication

  • Auto Power Off

  • Data Hold

  • Safety Rating: CAT III 600V

  ---

  ? General Characteristics

  • Power Supply: 2 x 1.5V AAA batteries

  • Display Size: 52mm x 66mm

  • Product Dimensions: 143mm x 74mm x 17mm

  • Net Weight: 142g

  • Standard Accessories: Batteries, test leads, temperature probe, English manual

  • Packing: Gift box + carrying bag
