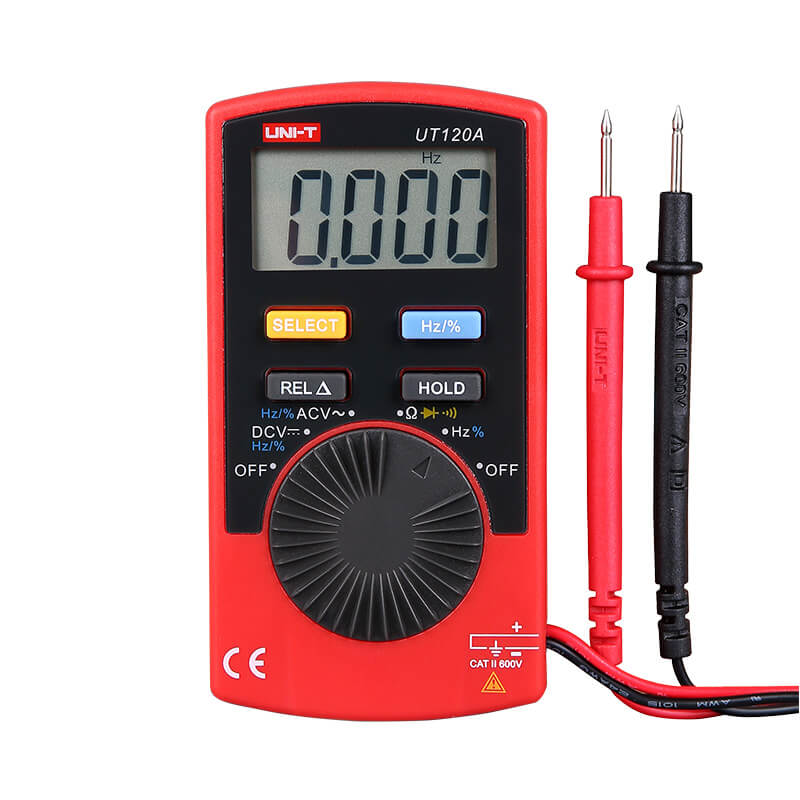

Features of UT120 Series Pocket Size Digital Multimeter
Certifications: CE, UKCA, cETLus UT120A
● Auto power off
● Auto range
● 4000 display count
● Data hold and relative mode
Specifications of UT120A Series Pocket Size Digital Multimeter
| Function | Range | UT120A |
|---|---|---|
| DC Voltage (V) | Up to 600V | ±(0.8% + 1) |
| AC Voltage (V) | Up to 600V | ±(1.2% + 3) |
| Resistance (Ω) | Up to 40MΩ | ±(1.0% + 2) |
| Frequency (Hz) | Up to 10MHz | ±(0.5% + 3) |
✨ Features
| Feature | UT120A |
|---|---|
| Display Count | 4000 |
| Auto Range | ✔️ |
| Duty Cycle (0.1% ~ 99.9%) | ✔️ |
| Diode Test | ✔️ |
| Continuity Buzzer | ✔️ |
| Auto Power Off (≈30 min) | ✔️ |
| Low Battery Indication (≤2.4V) | ✔️ |
| Data Hold | ✔️ |
| Relative Mode | ✔️ |
| Input Impedance (for DCV) ~10MΩ | ✔️ |
⚙️ General Characteristics
| Item | Details |
|---|---|
| Power Supply | 3V Battery (CR2032) |
| Display Size | 43mm × 22mm |
| Product Color | Red and Grey |
| Net Weight | 76g |
| Product Dimensions | 110mm × 58.2mm × 10.8mm |
| Standard Accessories | Battery, Carrying Case |
| Packaging | Blister Pack, English Manual |
| Carton Quantity | 100 pcs |
| Carton Dimensions | 750mm × 275mm × 490mm (0.1 CBM) |
| Carton Gross Weight | 20kg |
