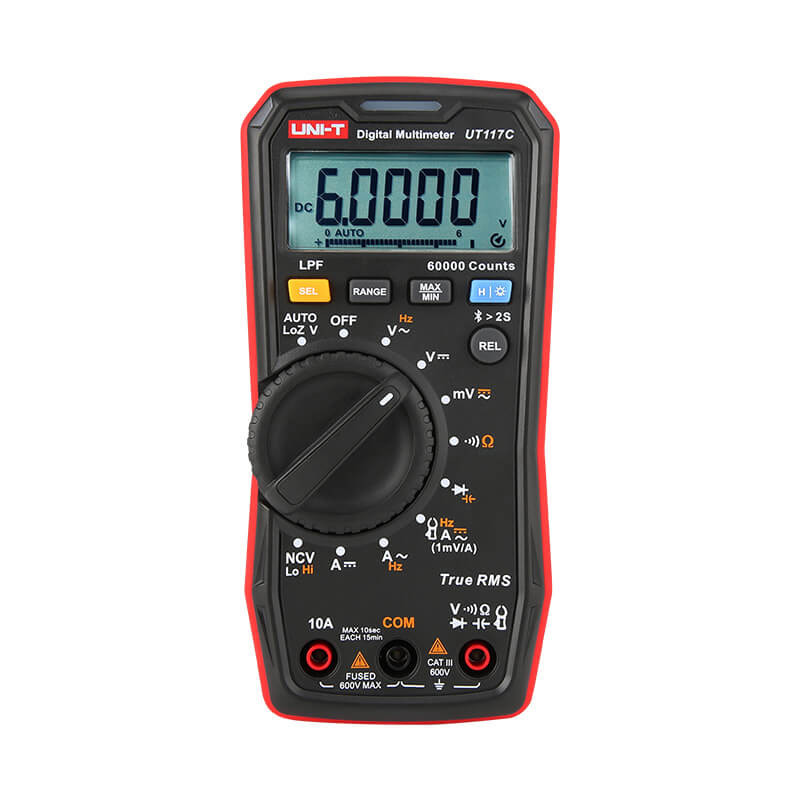

Features of UT117C High-precision True RMS Digital Multimeter
Certificates: CE, UKCA, cETLus
● High-precision: 60000 counts
● True RMS measurement
● AC/DC current: 10A
● AC/DC voltage: 600V
● LoZ, LPF & Auto Volt function
● Audible & Visual Warning
● Bluetooth app supported
● External current clamp supported
● Compact design, easy & convenient operation
● Drop test: 2m
● Magnetic hanger supported (optional)
● Overvoltage category: CAT III 600 V
Specifications of UT117C High-precision True RMS Digital Multimeter
| Model | UT117C | |
| AC voltage | 600.00mV/6.0000V/60.000V/600.00V | ±(1%＋30) |
| AC current | 6.0000A/10.000A | ±(1.5%+30) |
| DC voltage | 600.00mV/6.0000V/60.000V/600.00V | ±(0.3%+10) |
| DC current | 6.0000A/10.000A | ±(0.5%+10) |
| Auto-V loz | 600.0V | ±(1%+3) |
| LPF voltage (ACV) | 600.0V | ±(2%+3) |
| Frequency | 99.99Hz/999.9Hz/9.999KHz/50.00KHz | ±(0.01%+3) |
| Resistance | 600.00Ω~6.0000MΩ | ±(0.5%+5) |
| 40.000MΩ | ±(3%+5) | |
| Capacitance | 1000nF/10.00uF/100.0uF | ±(1.9%+5) |
| 1000uF/10000uF | ±(2.5%+5) | |
| Main Features | ||
| Display count | 60000 | |
| External current clamp | Ratio: 1mV/A | √ |
| Continuity & Diode | √ | |
| NCV | √ | |
| Data Hold | √ | |
| Manual/Auto range | √ | |
| Max/Min | √ | |
| Relative mode | √ | |
| High voltage warning | √ | |
| Audiable & Visuable indication | √ | |
| Low battery indication | √ | |
| Auto Power Off | Around 15 minutes | √ |
| LCD backlight | Auto power off after 5 minutes | √ |
| Bluetooth | √ | |
| Drop Test | 2m | √ |
| Overvoltage category | CATIII 600V | |
| General Characteristics | ||
| Power supply | 1.5V AAA * 3 | |
| Product Color | Red + Grey | |
| Product Weight | Around 346g | |
| Product Dimension | 169x 84x 48.8mm | |
| Accessories | Test probe*1 pair, Battery, Magnetic strap*1 pcs, User manual*1 pcs | |
| Package quantity | 10 pcs / package | |
| Package Size | TBD | |
| Gross Weight | TBD | |
Applications of UT117C High-precision True RMS Digital Multimeter
AC voltage measurement External current clamp supported
Resistance measurement AC voltage (LPF function)
