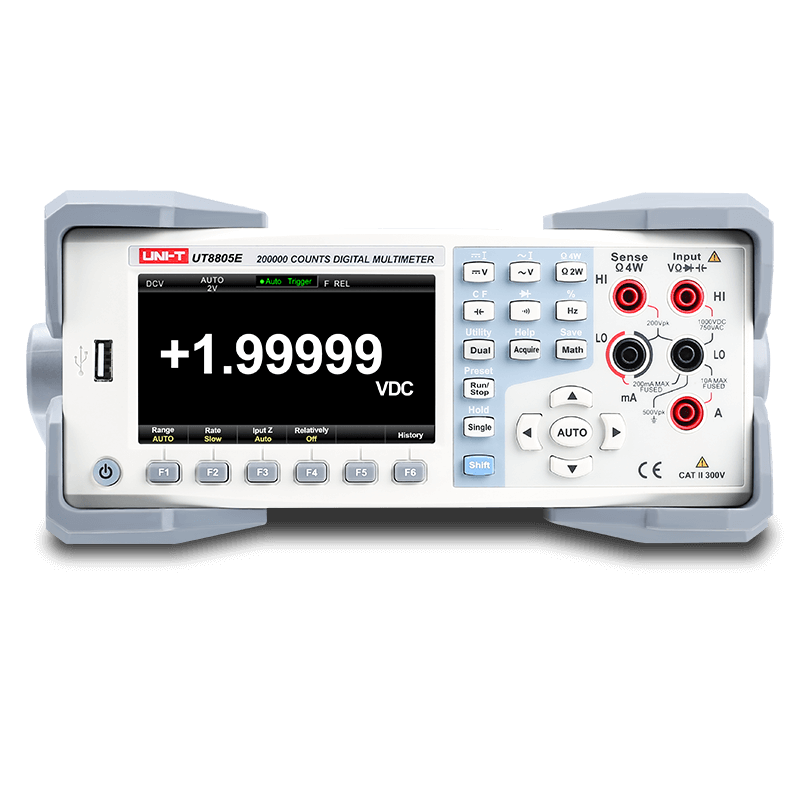

UT8805E Benchtop 5 1/2 Digits Digital Multimeter 750ACV / 1000DCV
UT8805E is an auto-ranging, true RMS desktop digital multimeter with 199999 counts, up to 5K rdgs/s, 300kHz frequency response, and a 4.3-inch TFT LCD. Pass/Fail, maximum value/minimum value/average value/relative value measurement, etc., 10K reading history data record, 1Gb Nand Flash total capacity. It is a superior electrical measuring instrument. It is suitable for measurement in electronics, communications, manufacturing, petroleum, national defense, electric power, chemical and other industries. It is an indispensable experimental tool for various colleges and universities.
Features:
- True 5½-digit reading resolution
- Up to 5k rdgs/s sampling rate
- Multiple mathematical operations
- True-RMS, AC voltage range:750V,AC current range:10A
- Built-in thermocouple cold junction compensation
- Arbitrary sensor measurement
- 1 GB flash memory storage which can support up to 10k data recall
- With 4.3 inches TFT LCD. Pass/Fail
- Support USB, GPIB, RS-232C and LAN interface; support USB-TMC, IEEE 488.2 standard, VXI11 and SCPI language.
Specification:
| Model | UT8805E | |
| Specifications | Range | Accuracy (90 days) |
| DC voltage (V) | 20mV/2V/20V/200V/1000V | ± (0.008%+0.003%) |
| AC voltage (V) | 200mV/2V/20V/200V/750V | ± (0.19%+0.05%) |
| DC current (A) | 200μA/2mA/20mA/200mA/2A/10A | ± (0.050%+0.005%) |
| AC current (A) | 2mA/20mA/200mA/2A/10A | ± (0.30%+0.1%) |
| Resistance (Ω) | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ/10MΩ/100MΩ | ± (0.012%+0.003%) |
| Capacitance (F) | 2nF/20nF/200nF/2μF/20μF/200μF/2mF | ± (1%+0.5%) |
| Frequency (Hz) | 20Hz~1MHz | ± (0.01%+0.003%) |
| Temperature | -270°C~1760°C (thermocouple and thermal resistance sensor supported) | ±0.5°C |
| Special Function | ||
| Display count | 199999 | |
| Auto range | √ | |
| True RMS | √ | |
| Sampling speed | 5k rdgs/s | |
| Data storage | 10k data record; 1GB Nand Flash total storage | |
| Frequency response (Hz) | 100kHz | |
| Diode/triode | √ | |
| Continuity buzzer | √ | |
| Data hold | √ | |
| Mathematical operations | Pass/Fail, relative value, minimum/maximum/average, standard deviation, dBm, dB, Hold, histogram, trend chart and bar chart | |
| Voltage & current | AC+DC | |
| Input resistance | ≥10GB or 10MΩ | |
| Interface | USB Host, USB Device, LAN, RS-232 | |
General Characteristics:
| Power | AC 100V~120V: 45Hz~440Hz; AC 200V~240V: 45Hz~66Hz |
| Display | 4.3 inches TFT LCD |
| Product color | White and grey |
| Product net weight | 4.4kg |
| Product size | 239mm×100mm×344mm |
| Standard individual packing | Carton box |
| Standard quantity per carton | 2pcs |
| Standard carton measurement | 380mm x 330mm x 320mm |
| Standard carton gross weight | 9kg |
