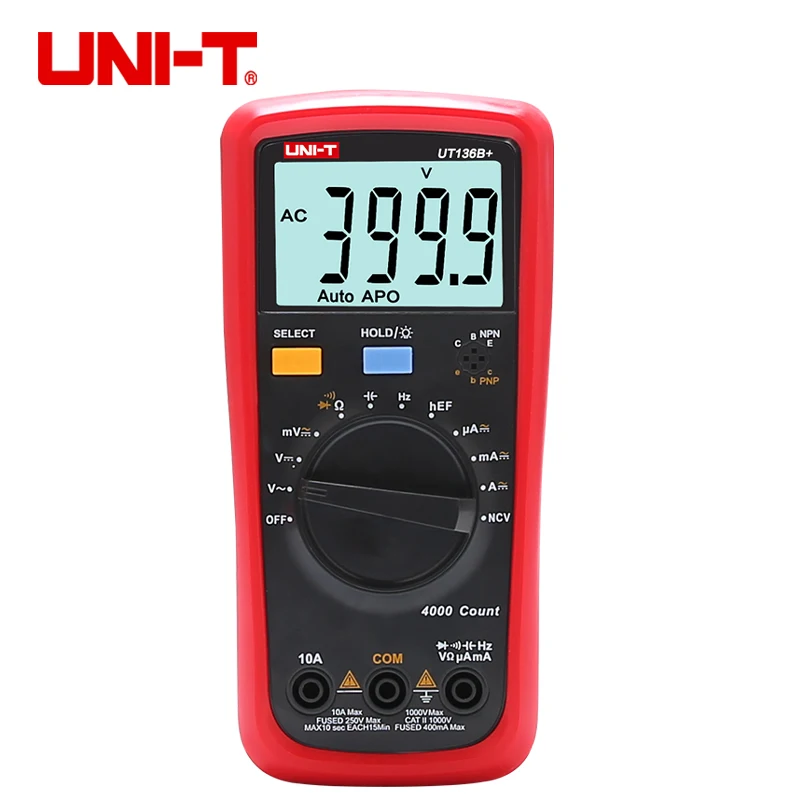

Description of UNI-T UT136B+:
UNI-T UT136B+ Digital Multimeter is a newly upgraded Auto Range digital multimeter, which is now available in Pakistan. it has display count of 3999, Safety level up to CAT III 600V.
Features of UNI-T UT136B+:
- 3999 Digital display.
- NVC.
- Continuity Buzzer.
- Auto power off.
- Data hold.
- Resistance measurement.
- Temperature measurement.
- Capacitance measurement.
- LCD backlight.
Specifications of this Digital Multimeter:
| Specifications | Range | Best Accuracy | |
| Model | UT136B+ | UT136C+ | |
| DC Voltage(V) | 400mV/4V/40V/400V/1000V | ±(0.7%+3) | ±(0.7%+3) |
| AC Voltage(V) | 400mV/4V/40V/400V/1000V | ±(1.0%+3) | ±(1.0%+3) |
| DC Current(A) | 400uA/4mA/40mA/400mA/4A/10A | ±(0.8%+3) | ±(0.8%+3) |
| AC Current(A) | 400uA/4mA/40mA/400mA/4A/10A | ±(1.0%+2) | ±(1.0%+2) |
| Resistance (Ω) | 400Ω/4000Ω/40kΩ/400kΩ/4MΩ/40MΩ | ±(0.8%+2) | ±(0.8%+2) |
| Capacitance (F) | 4nF/40nF/400nF/4uF/40uF/400uF/4mF/40mF | ±(3.0%+5) | ±(3.0%+5) |
| Frequency (Hz) | 400Hz-40mHz | ±(0.1%+4) | ±(0.1%+4) |
| Temperature (°C) | -40~1000°C | ±(1.0%+4) | |
| Temperature (°F) | -40~1832°F | ±(1.5%+5) | |
| Features | |||
| Display Count | 3999 | 3999 | |
| hFE | √ | √ | |
| NCV | √ | ||
| Diode | √ | √ | |
| Continuity Buzzer | √ | √ | |
| Date Hold | √ | √ | |
| LCD Backlight | √ | √ | |
| Auto Power Off | √ | √ | |
| Low pressure display | √ | √ | |
Package Include:
- 1x UNI-T UT136B+ Digital Multimeter
- 2x Probes
- 1 x English User munual
